Just to give myself a change from the normal morning routine, I didn’t varnish the brightwork until this afternoon. Translation, I overslept and didn’t have any time before starting work !
Nevertheless, these items did get a coat of varnish but on the reverse side to the sides coats before. These all have four new coats of varnish on the first side and I’ll do four on this side as well.
I checked the new bolt length for fit on the centerplate case sides and there is plenty of length now.
The next task was to get the laminates for the transom repair made, starting with the outermost. As this is the face that will be seen, it needs to be as perfect as possible. Grain going in the same direction as the wood surrounding it and with as few gaps around the edges as possible. This is not difficult, it just requires a bit of to and fro as you dial the size in to fit exactly. I normally cut the piece about 1mm too large, offer it up the the gap and cut off fractions until it fits exactly.
What I did not do was the same thing for the top edge. I made the sides fit, as you can see, but left the rest too large. This will be fitted later when the inner laminate is done and the three pieces glued together.
Time for a cup of tea.
After work I set about making the other two laminates for the transom repair.
This is the inner laminate and like the outer one, the top edge was not finished.

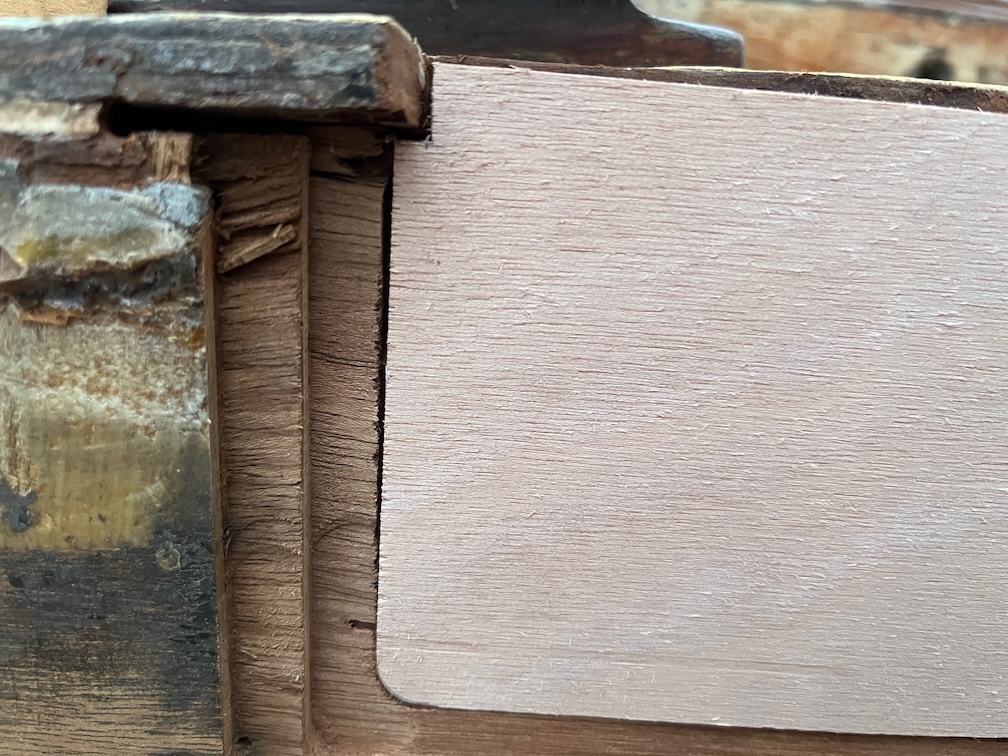

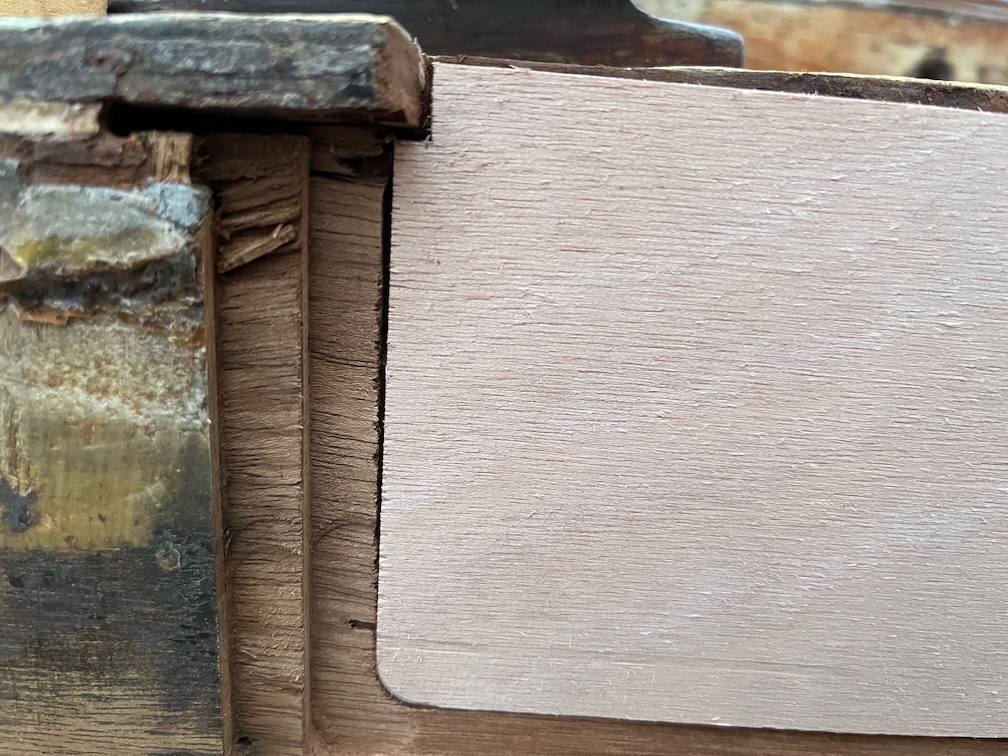

And this is the inner laminate.
This one wasn’t quite such a good fit, but this will be filled with thickened epoxy when the plug is glued in place.
I traced the curve of the underside of the deck on the inner laminate. It is quite rough so I decided to smooth it out.
I clamped a flexible batten to the wood such that the edge ran along the pencilled line, more or less and then drew a dark pencil line along the batten.
Now the curve is fair and I can cut it out.
The result looks lopsided and that is because it is. The repair is not quite centred on the transom, so the curve is not symmetrical.
But, as you can see, it is a pretty good fit.
All that remained was to locate the laminates and I did this by drilling four 3.2 mm holes in the inner laminate, putting all the laminates in place and drilling through the holes right through the inner laminate and halfway through the outer such that the holes did not appear on the outside of the outer face.
Short piece of bamboo skewer were inserted into the holes to hold the laminates in position. This was dry fit to check that I hadn’t messed it up and then the laminates were brought inside to warm up.
Once the laminates had warmed up it was time to epoxy them together.
Neat epoxy was spread on all the surfaces to be glued and left for a few minutes to soak in a little before the laminates were assembled, using the bamboo skewer pieces to locate the three in the correct relative positions. Lead weight was used to apply clamping pressure and the excess squeeze out removed every quarter of an hour or so the avoid having to deal with hardened epoxy later on.
With the weather due to warm up into the low teens at the weekend, this plug will be ready to be glued into place when a suitable temperature is reached.
After I had lunch I still had some time left on my lunch break, so I decided to cut out the top section of the transom that was damaged and giving soft returns when tapped.
I was surprised to find that the damage was quite extensive.You can see the area that was marked as needing a graving piece, I’ve had to cut entirely through the transom. You can also see that the rotten/damaged wood extends into the aft deck and down behind the backing pad upon which the rudder gudgeon was fixed. That meant that the pad had to come off and in the process of removing the rudder fitting I found that only the lower two screws were holding. The upper two came out without needing to unscrew them.
So, that part of the transom has to be replaced and the reason for that is that if nothing was done and the top part of the rudder broke away from the transom due to the rot behind it, you would be unable to control the boat and that is a safety issue.
I went back to work at this point and continued at my next break.
From this point I have to chase the rot along the deck and the transom to find good wood before I can rebuild the transom.
This is how much needed to be removed of the transom before I found good wood. The deck was also cut back a little but not that far. The rot seems to have travelled downwards.
I have no idea what this feature is, it was filled in with epoxy but you can see that it was painted at some point and may have been an old repair made by cutting out the ‘scoop’ of wood and then sealing and painting it.
On the other side I had to take the beading at the top of the transom back a little further than the plywood./
This is the centre section and I think that the pad of wood glued to the transom from the inside is either a backing pad to spread the strain of the rudder or a repair. Possibly even both.
Still, this now needs to be dealt with.
The repair is not difficult despite looking quite extreme. I’ll cut a plywood router guide and nail that to the transom about 5mm out from the hole and then use a router follower bit to make the edges of the hole square to the face of the transom and square to the sides and bottom of the hole. Then I shall make another plywood template that cuts a hole about 10 mm wider and taller than the hole and remove two thirds of the thickness of the edges of the hole. I’ll repeat this once more such that the edges of the hole are stepped instead of straight. The hole will then be filled with three layers of plywood with each piece filling one of the steps.
I’ll need to remove the big pad on the inside and the batten that runs at the top of the transom since the glueing is done from the outside inwards and those will get in the way. A portion of the aft deck will be removed so that I can graft in a new section once the transom is done.
If all goes well, this should only take a few days to repair.
Time for a cup of tea.
The first thing to do is to cut away the sections of the transom that will impede the router. I decided not to remove the centre backing pad as I do not know how it is fastened on at the back and this way is quicker.
The second thing to do is to make a template for the curvature of the top of the transom since all the filler pieces will need to follow this curve or the deck will not sit flush with the top of the transom when it is repaired.
The transom is three quarters of an inch thick or a fraction over 19 mm. The marine plywood I have is 6 mm so three layers of that plus epoxy will be around that thickness. All well and good.
Time for a cup of tea.
After knocking off from work I set about cutting the stepped opening.
Firstly the curved template. This was fairly easy to do, I just pressed a piece of cardboard on the outside and drew under the aft deck on the inside and cut along the line. Easy.
This is the routing template. It is quite large since the cut out gets bigger each time it is used. This will straighten the edge of the current raggedy hole.
And this is how it is used. The template is nailed to the transom with panel pins and a bottom follower bit in a trim router is used to cut away the excess wood all the way through the transom.
Here is the result of the first pass, nice straight edges.
The only drawback of this method is the rounded corners. The top ones can be cut away with a sharp chisel easily enough, but the bottom ones are a sufficient trial that I round the corners of the inserts instead.
This is the result after three passes, each one larger than the last but a shallower cut.
This is a slightly better view. I checked with a piece of plywood and the two outer cuts are about as perfect as I’m going to get. The inner cut is 1mm deeper than the plywood as three layers of 6mm is 18mm and the original transom is 19 mm so there always was going to be a discrepancy, but I can live with that.
After the usual round of applying varnish to various parts of the boat, I took a look at the case side.
Here I have removed the peel ply and the result is pretty good. It will need sanding but that was expected. For now, I shall put it by the Rayburn to keep warm to allow the epoxy to reach full strength before I take sand paper to it.
After that I turned my attention to the transom. Armed with hot air gun and a scraper it was the work of only half an hour to remove the paint and varnish. I say paint, but I think it is a coloured varnish rather than a paint and you can see why it was put on. There are several damaged areas as well as dark areas where the wood has suffered water damage.
This is an area that needs some attention, at the top of the transom just to the left of the rudder gudgeon. Here is looks as though the plywood has been sanded too aggressively and that has removed the outer layer of the plywood. The exposed and rough grain will wick water easily and although no damaged seems to have occurred as yet, this area needs to be sealed to prevent water ingress.
This was the most surprising area. It looks to be a massive repair and I suspect that it was carried out due to severe water damage.
This is a section from a photo of Shoal Waters whilst she was still in the ownership of Charles Stock and you can see a large discoloured area to the left of the name board that corresponds to the repair in the photo I took this morning.
So, more tasks to add to the list. Remove any remaining varish, sand and fill the two, possibly three areas that need graving pieces. Carry out some stain removal to at least lighten the darkened wood. Then I will probably stain the entire transom just to stop it looking such a light colour and after that, we shall see.
Sa far an interesting morning.
Time for a cup of tea.
During my next break I sanded the transom with 180 grit sandpaper and then went tapping around to see where the soft returns were.
The green area is where I’ll certainly put a graving piece and the red areas show where I’m getting soft returns with my tapping. The top red area is a place where I’m tempted to put another graving piece rather than use the epoxy sealer. One or two of the very darkened areas of wood I’ll treat with Oxalic acid and try to bleach the wood a little, but other than that I think the transom will be lightly stained to even out the discolouring and then varnished. This will not hide the repairs and such, but they will be less noticable unlike with the varnish/paint which hid everything.
The two red area on the left will be left until Shoal Waters is next out of the water for maintenance and I can spend more time investigating and repairing.
The weather this morning was a little warmer than yesterday, but even so, the day started in much the same fashion as previous days, varnishing.
The first small task was to insulate the flame spreader handle. This handle is not left on the spreader when in use but used to remove the spreader when hot. Unfortunately, the bare handle becomes very hot very quickly and without care a burnt hand results. This insulation consists of 6 mm round stove rope threaded onto the handle, glued at the ends with seal adhesive and then, when the adhesive had dried, cotton string was wound over the stove rope creating the handle you see. This resists burning and insulates the handle well enough to be able to use it on a hot spreader without burning skin in the process.
The spreader fits well on the galley stove but I now need to find somewhere to stow the spreader and handle.
The next task was to repair the port centerplate case side that was damaged yesterday. I have clamped a small batten of wood encased in film up agains the edge where the repair is required.
Epoxy lightly thickened with low-density filler was dripped into the damages area and peel ply applied. I used the fast hardener as it was a simple application and I did not need the extended pot life of hte slow hardener.
There were also two other spots where the glass mat was slightly exposed and were treated similarly. Once the epoxy has cured all three areas will be lightly sanded to the same level as the surrounding epoxy.
Another small task was to rummage through the various boat bits I have around the places for two cleats to put on the boom for the luff reefing lines. I did have some but they were far too small for the job, so suitable ones are on order.
To complete the galley stove locker I put in place some chafe and clink prevention.
I put a length of sticky-back neoprene tape on the bottom of the locker where the edge of the stove board or the lid will rest. This is the chafe protection.
Then I used some very sticky double sided sticking tape to fix a small foam paint roller in the corner of the locker and this is the clink protection.
When the stove is stowed the foam roller prevents the lid of the stove opening and closing, going clink against the locker or against the stove itself every time the boat rocks with a wave. I know this from experience of living aboard a sailing boat for ten years. There’s absolutely nothing so annoying as something going clink, clink, clink, clink whilst you are trying to sleep. Whether it be pots, pans, crockery, loose tools, it doesn’t matter, it is infuriating !!!
Anyway, that completes the galley stove and locker task.
The next small task is to remove the Maldon sign on the transom.
This is the back of the sign and you can see that some of the transom has pulled off with the sign. This sign is marine plywood and was glued in place with a sealer adhesive and a very good one at that.Too good, as it turns out.
Here you can see the area on the transom that was pulled off. You’ll note that there appears to be three holes in the transom, two at the bottom and one at the top right. I would presume that there is fourth under the white stuff. Armed with a heat gun and scraper I got rid of all the sealant and the brown paint/varnish.
Here is the result. there was indeed a fourth hole but it also looks like that large area of white sealant also filled in an area that was damaged. You can see the vertical grain of the plywood that is under the outer layer, so there seems to have been some older damage to the transom in this area.
I recall that for the first year that Tony Smith owned Shoal Waters, he mounted what looks like a long shaft seagull outboard motor in the stern and I wonder if these holes and damage were something to do with that. Not that it matters, the thing is how far down the rabbit hole do I want to go with the repair? The simplest and easiest way to deal with this is to fill it with sealant again, a non-adhesive type, since it is under the Maldon sign and will not be noticeable. The correct way to fix this is to insert a graving piece by cutting a shallow recess where the damage is now, I’d make this 6 mm deep as that is the thickness of the marine plywood I have, then cut out a piece of plywood that fits into the recess and glue it in.
My first inclination is to do it properly, but I recall that there is a soft area on the transom on the port side that needs looking at, so I am really tempted to scrape the layers of paint and varnish off the transom entirely, it comes off really easily, and to see if there are other areas that need to be dealt with and do them all at once.
Something to think about.
The final task for the day, for which I do not have photos, was to clean up the slot and top of the keel. Mostly this meant removing any loose glue by sanding and then prising it off with a chisel. Quite a lot is on very securely and rather than risk damaging the wood by forcing it off, I’m going to leave it on. The sides of the entire slot was sanded with 120 grit sandpaper as was the top of the slot. I also cleaned up the front face of the aft block and found another soft spot. This was about the size of the thimble and I excavated it with a chisel blade. Before I assemble the case properly this area, as well as the two soft spots on the hull, will be liberally coated with the penetrating epoxy. The thimble sized hole itself will then be filled with thickened epoxy.
It is a miserable day today, here in the Fens of Norfolk. It has been sleeting sideways for the last couple of hours and it cold, just 2º C. Still, most of the tasks for today are in the workshop out of the wind and rain.
First up is the name board.
This is the board vanished on the front..
But not on the back. The varnish you can see here has come from being varnished in place on the transom. The trouble is that having no varnish on the back has caused the wood to warp and with screws in the middle of the sides instead of on the four corners, the warp has pulled the top and bottom away from the transom and varnish has seeped down behind the sign.
So, to carve the name I had to first un-warp the board. It’s currently resting on the Rayburn, varnish side up and is starting to get flatter.
Next I took sandpaper and scraper to the rudder stock for a little energetic work to warm me up.
Next, trimming the excess glass mat and epoxy from the case sides. This one worked well.
The port side not so well. The trimming and sanding around three of the edges came out correctly.
But I screwed up when putting the peel ply on the aft section here and it overlapped the inside face where it should not and I had to cut away the glass matt to get it all out. It’s not too much of a problem, I’ll just have to mix up some epoxy and patch the gap.
In the meantime, I drilled out the pivot bolt holes, put the case sides together inner face to inner face, put the metal plates on the stiffeners and put the bolt in place with the spacer on the outside. As you can see, the bolt is about 5mm too short ! It has to be long enough to screw through the nylon locking ring, it is not called nyloc for nothing, or be long enough to allow a lock nut.
So, one 10mm longer is on order. This one will do for the next phases, the dry fit possibly even the real fitting, but the longer one will be needed before the boat goes into the water. There will be six layers of sealant, two either side of the spacer and one each under the metal plates and one on the outside of each plate and under the bolt head on one side and the nut on the other. All those sealant layers will probably mean that the shorter bolt may not fit. I have M10 studding from which I can cut a longer bolt but since it is mild steel it will only be good enough for the assembly.
Still, not having the correct bolt will not stop progress.
It has stopped sleeting and is now snowing. Still cold.
Makes one glad for a workshop.
Since I have the poop deck removed I decided to continue the theme of getting ahead of the brightwork where possible and give it a coat or two. I was sanded in the workshop, brushed off and then brought into the workroom for its first coat of varnish. Being an outside piece of varnish it needed a good sanding but has come up nicely as a result. This might only need two coats. I might put more on, after all it is going to be out in all weathers when sailing and under a piece of canvas when on the mooring, so more coats of varnish will be better than less.
One of the things on my list of upgrades for Shoal Waters in the future is to replace all her old blocks with new ones. In the meantime I will replace the old blocks with Tufnol blocks that I have left over from building Naiad.
Shoal Waters’ blocks are currently like the one on the left and the spare ones I have are the others. I say spare but the fact of the matter is that I ordered exactly enough blocks to dress Naiad’s mast, the five new looking blocks on the top row. But they didn’t arrive. After a month or so I got back to the supplier and asked what had happened and they had no record of the order being fulfilled, so they sent out a new set of blocks which arrived within a few days. All well and good. Naiad was launched and I thought nothing more about it until about nine months later when the original set of blocks arrived in the post.
I contacted the supplier and they said that since they still didn’t have a record of those being fulfilled and dispatched I was free to keep them. They have been sitting in my rigging kit box for the last seven years!
So, Shoal Waters will have her existing block replaced by these Tufnol blocks and I’ll make some shiny new wooden ones for another season.
For now, since it is Sunday and I have already carried out a number of tasks, I shall call it a day and rest for the remainder of the afternoon and evenong.
A slight change to the procedure today, it was 1º C when I first went down to the boat this morning and there’s no way that it is suitable to apply varnish. So I turned on the heater and took a look at the work I did yesterday.
Having removed the cramps and such I tested the epoxy with a fingernail and found that it was quite solid. It seems that the heater arrangement worked well.
I trimmed off the tops of the pins and the did not break the top off the block, so I will presume for the moment that it is well stuck.
Time to clear the area for the next task.
This is the area under the poop deck and you can see the lockers that occupy the space under the aft deck. This is pretty useless as is in order to get at anything in these lockers you need to clear out everything under the poop deck, or remove the poop deck.
I would have left these untouched but the surveyor noted:
…the two bronze cleats aft are only screw fastened to the thin plywood deck; without any wooden blockings below. Recommendations: Ensure the aft bronze mooring cleats are securely mounted.
The access to these cleats is via the locakers and that is not going to be easy. So, I elected to remove these lockers which will not only allow backing pads to be placed under the cleats but easier access to the otherwise awkward space.
The area under the poop and aft decks is quite spacious.
There is even more space once the locker fronts are removed. This space is now usable.
The next part of the task is to remove the cleats. This one has a wellie hook.
Here’s what Charles has to say about wellington boots:
I use traditional knee length wellington boots for mud work. They need to fit well so that they do not stay behind in the mud as you walk forward. One minor irritation, especially for knock-kneed sailors is that mud on the inner side of each boot will transfer from one boot to the other as you walk, rising higher each time and getting onto the inner side of your trouser legs above knee level. This means mud on board and in the cabin. The answer is to walk slightly ‘Frankenstein’ fashion, preventing the boots from touching. Whatever you do when working in mud, some will stick to your clothing. Do not try to rub if off wet for it will only stick harder. Leave it to dry when it will brush off cleanly. Once boots have been in the mud they are not welcome on board until cleaned, but this cannot be done without water. Don’t leave them stuck in the mud alongside the boat for they will float off very quickly as the tide returns. Tie them to a cleat (see fig. 5). I use a piece of shock cord with hooks at each end. Once wellingtons came with holes punched in them at the back just below the lip, presumably to tie them together in pairs. Since the advent of packaging in hygienic boxes such holes are missing but the office punch will suffice.
Sailing Just for Fun pp 57-58
Anyway, the hook is in the way and needs to come off.
The screws in this cleat have been replaced with stainless steel screws, a sure sign that the originals were brass and dezinced to the point of being useless.
The screws came out easily, thankfully, which is not surprising when you consider that they are just into 3/8″ plywood.
Similarly, the screws came out easily on the port side. Now to make the backing pads.
I cut the removed fronts of the aft lockers into four 120mm square pieces…
…and glued them together with the varnished side outwards.
It was still sufficiently cold to make the glue drying time long, so into the house they went to be placed on the Rayburn with a pot on top as a weight.
Since I hd a little bit of time I decided to try and locate the ‘soft return’ that was reported by the surveyor on the port bow.
This is it here, I think. Here’s a short video of me tapping.
I think you can hear the difference in the sound return from the good and soft wood.
I’ve sanded the paint a bit to tidy up the area and once the wood has dried I’ll apply so of that penetrating epoxy I keep going on about. The same for the transom, if I can find the soft spots.
The name plate on the stern is looking a bit ragged so I took it off and sanded and scraped a bit. The trouble is that the letters are a vinyl transfer, as far as I can see and sanding is going to sand off the vinyl as well.
You can see that happening on the bottom of the ‘W’.
Time to move on with the cleat backing pads. It was a bit tricky but eventually I got the bolts cut to length, the butyl tape applied and the backing pads in place. This is the starboard one…
And this is the port side. The bolts came out very close to the edge of the pad, but that is due to the location of the cleat on the deck.
The starboard cleat from the top. The squeezed out butyl will be removed later.
The port side cleat had a bit more butyl tape under the cleat so there is more oozing out.
The drop nose pin arrived in the post this afternoon and I didn’t waste any time trying it out.
The is the other side and the head has a groove running around the circumference for attaching a light line.
The tiller was a tight fit, mostly due to excessive build up of varnish, so I took it over to the belt sander and slimmed it down a little.
I had to take more off than required as needed to varnish the now bare wood.
This does seem to be a very nice piece of wood and as far as I can tell, it is the original tiller that Charles put into Shoal Waters back in 1963. Every photo I have of the boat around that time shows this as the tiller. I wonder if this came from Charles’ previous boat the Zephyr? I know he took a lot of the gear out of the Zephyr and used it in Shoal Waters, but whether the tiller was part of that I don’t know.
Still, it is at least 63 years old and in near perfect condition.
Hanging from the beams in the workroom with a coat of varnish. I lightly sanded the existing varnish prior to applying fresh.
I also washed these two boards with white spirit, lightly sanded and applied varnish. The board on the left is the bottom washboard, and the other is the board that goes between the two thwarts under the poop deck. A second coat of varnish was applied in the cabin, so that is also coming along.
It was a great day. The sun shone and despite a cold start to the day it soon warmed up to a balmy 7º C. There was little or no wind and I managed to get a lot of things done and ticked off the list.
All that remains of the major construction efforts are the fitting of the centerplate case and whilst that is not a simple task, it is not difficult. It is, however, just a tad daunting. Making it completely watertight and strong is critical to not having the boat sink when launched !
As is now usual the first task before work was to apply some varnish to two small areas in the boat, the back of the new galley locker and the cut side of the forward locker lid.
After that I turned the heater on, pointed the end of the hot air duct towards the existing aft block, covered the cockpit footwell with a piece of carpet and left it running for a couple of hours.
During my morning tea-break I applied neat epoxy to the top of the aft block, now well warmed up, and to the bottom of the new piece, also warmed up by being on the Rayburn all night, then added some thickener to the remaining epoxy, spread some of this onto the bottom of the new piece, and took thickened epoxy, top and pins down to the boat.
The pins were put into the top section and allowed to protrude an inch or so to make locating the top easier. The new section was put in position and the pins tapped into their holes fully. After a little cleanup of the squeezed out epoxy I clamped two thin pieces of wood on either side of the block, each having plastic film wrapped around them as I do not want them to stick to the block. After that I replaced the carpet over the footwell and hopefully, even on its lowest setting, it will be enough to keep the wood and epoxy warm enough to cure properly.
I’ll leave the heater running for most of the day and then evening to give the epoxy time enough to begin the cure process.
While I was down at the workshop and still had break time left, I bolted the galley stove to the support board and the galley stove task is completed.
I had a useful arrival for Shoal Waters just before lunch, a cast iron flame spreader.
This is the item and a very useful device it is for portable gas stoves (PGS). You see, the main problem with cooking on a PGS is that you tend to use camping or hiking pots and pans, usually made of aluminium of stainless steel, but all very thin metal.
Okay, so I do have a medium sized cast iron frying pan on Naiad, but that’s beside the point.
The issue is that it is unbelievably easy to burn everything, the thin base of the pots does not conduct the heat away from the flame much, so you get a very hot spot in the centre of the pan and a much cooler area around the edges.
Try cooking porridge on a PGS in a thin bottomed pot and you’ll soon see what I mean.
This also happens with the alcohol burner stove I have on Naiad and I have one of these flame spreaders on her as well.
The flame spreader does just exactly what it says with the result that you get a pretty evenly spread heat right across the 170 mm diameter of the spreader. I have found that it really works well on Naiad and since I like porridge, I got one for Shoal Waters as well.
There are three problems with it. Firstly, it takes a bit longer to start cooking since you have to heat up the spreader first. Secondly, it gets hot enough to scorch wood so you need to leave it on the stove until it is cool. Thirdly, the handle, which you take off when using the spreader, gets hot very quickly when you put it into the spreader to lift it off the stove, hand burning hot. I’ll see if I can make some kind of heat resistant covering for the handle.
It is a great fit on Shoal Waters’ new gas stove, as you can see.
The pot holders on this stove are stepped and this makes the stove top fairly non-slip.
I boiled a kettle of water and then put the spreader on a piece of wood, just to see how bad the scorching was and as you can see, it’s not good. Several of the charred spots you can see here were smoking.
Still, with the spreader fairly well secured on the stove by the stepped pot stands, I don’t think this is going to be too much of a problem. If it becomes one in the future, I’ll try something else. A ceramic trivet, for example.
Time for a cup of tea.
Finally, for today since the temperature is falling fast and affecting my fingers, again, I decided to tidy up a few of the pieces of Shoal Waters that I’ll be putting back in the places from which they were removed.
It is a simple task, just remove any loose varnish and sealant, check the edges for splinters and repair anything that needs it. This lot are fairly sound, mainly cosmetic damage.
These however needed additional work. Old screw holes were drilled out and plugged in the case of the grey piece, the other pieces need to be dried out, sealed with Clear Penetrating Epoxy Sealer and two of the pieces need to be glued back together.
If the wood dries out before I turn in for the night then I’ll apply the CPES, otherwise it will be a task for tomorrow.
The morning started the same way that it has done for the past fews days with varnish work. This time the bottom of the two boards and judging by the coverage, one is all they are going to get this time around.
I also put the heater on in Shoal Waters and put some stain on part of the new galley locker, the part at the back that will be visible.
This is the section of wood I mean. The white areas are where there has been glue on the wood and it doesn’t take the stain. Nevertheless, I shall bash on regardless and if it annoys anyone too much I’ll paint or replace it.
The resized locker lid has come out quite well. I washed the surface with White Spirit, dried it and gave it a coat of varnish. The far edge, which you can’t see, was bare wood and now has a coat of varnish. I’ll be putting varnish on that and the just stained wood in the coming days. It will not be as quick to do as the temperature is quite a lot colder out in the boat than inside the house. Maybe I’ll be able to get a single coat per day instead of two. The other locker lid was similarly washed and varnished but I’ll not do any more to that, one coat was sufficient.
The section of the locker lid that I cut off is really nice wood. I wonder where it came from. Charles was able to get wood from various places such as Mahogany from a man chopping up a billiard table (Sailing Just for Fun p25). Wood came from other places as well, a bank and the farm he managed before becoming a Civil Servant. These days this sort of thing is impossible, with the advent of eBay everything that looks even remotely useful is sold.
I need to see if I have any white paint so that I can paint the inside of the locker. The rest of the locker is very off-white paint due to age and I’d like to put the same type of paint on if possible, but if I do not have white then I do have some grey bilge and locker paint and I’ll just use that on the untreated wood. After all, it’s not going to be seen very often. After a quick trip down to the workshop I found that I did not have any white paint, so grey it is.
The peel ply was removed from the aft end of the skeg as the epoxy was sufficiently cured. The epoxy stayed in places despite the force trying to putt it off when removing the peel ply, a good indicator that it is well attached to the wood beneath. Another task crossed off the list.
The epoxy on the underside of the new aft bock top piece was carefully sanded back to the wood.
But the epoxy on the top surface was left as is since once the top piece has been glued in place it will be sanded to blend into the old block.
Time for a cup of tea.
The next task is to get the bullseyes done. Nothing difficult about this, just potentially messy.
The backing pads were put into the correct place and wedged there using two battens clamped together as shown. Not elegant, but it works. You do really need three hands to do it, one to hold the pad in place, one to hold the battens and a third to fit the clamp and tighten it up. You can get a single-handed version of this, I’ve watched other boatbuilders use them.
Anyway, the top and front surface is covered with sealant and the pad is screwed in place from the outside. Once that is done the bullseye can be fitted.
The four screw holes through the coachroof are clearance holes and chamfered so that the butyl tape has somewhere to go. You can see the tape on the screws in the bullseye.
The screws are tightened up a litte at a time until they are tight and you can see the tape squeezing out. I’ll run a sharp knife round the fitting later and remove the excess.
The screws holding the pad initially were backed off a little, butyl tape wrapped around the thread and then screwed back in again. Here the squeeze out is obvious.
The excess is easily remove just by pulling it off.
The other bullseye was similarly treated and yet another task can be ticked off the list.
I have a shed load of 6mm silicone rubber tubing in the workshop left over from when I added a water-cooled spindle to the CNC Router and I found a use for some of it.
I cut off a short length, slipped it over the end of the sealant nozzle, bent the tube over and tied it tight. Useful that.
Time for a cup of tea.
The next task is the tiller and rudder. When we collected Shoal Waters from the Goldhanger Sailing Club, the tiller took some persuading to come off. There was a brass bolt through the top of the rudder stock and through the tiller and it came out easily. The bolt was 1/4″ and the hole a bit bigger than that but I had to resort to hammering the tiller out with a mallet. Well, a hammer onto a piece of wood that was on the back of the tiller, but it is easier to say mallet.
I decided at that point that one of the tasks would be to fix this such that removing the bolt would allow the tiller to count out freely. Now is that time to make that happen.
This is the slightly modified rudder stock in that the two holes holding the bolts you can see and the hole through the tiller were drilled out to 8.5 mm. This allowed the two bolts holding the brass (bronze?) tiller holder to the top of the rudder stock to fit properly and also allows the use of an M8 and 80mm long drop nose pin. Or will when it arrives.
This is the original through bolt that prevents the tiller from slipping out. There’s nothing wrong with it except that getting it out in a hurry isn’t really possibly whereas using a drop nose pin is quick and easy to remove.
I put an M8 long bolt through the hole to check the clearance.
So, another task done. When the pin arrives I shall tie it to one of the bolts so that it can’t get dropped overboard by accident.
First task was to apply yet another coat of varnish to the top surfaces of the galley stove boards, this is the fourth and last coat for the tops. Once this has dried a little I’ll put them on the Rayburn to warm up and harden the varnish.
I decided yesterday evening that I really needed to do something about the bottom half of the aft block.
As you can see from the photo, parts of the front are damaged due, I have to say, to my slightly too aggressive work with a chisel when trying to get the old case sides out. There were, I decided, two practical ways to go about this. Firstly was to just cut the entire front off and replace it and the second was to fill in the damaged sections with thickened epoxy.
I decided to go with the second option as I have to make up some epoxy to fill in the accidental saw cut in the back of the new piece.
First thing, the heater was turned on and the warm air direct on to the aft block from inside the cabin. However, later on I took a look at the damaged section and it is a lot less severe than it looks in the photo, so I decided to leave it. The front part will be coated in neat epoxy before the sides are fitted and I’ll just make sure that plenty of epoxy is brushed into the damaged area.
The next task while I waited for the CPES applied yesterday to cure was to finish the bullseye backing pads. This could have been a bit messy since the procedure was to mix up a fair bit of thickened epoxy, spread it on to the top and front edge of each pad, cover the epoxy with clingfilm and then each pad was pressed against the coachroof where they will be installed.
Here we go, lots of thickened epoxy on the backing pads, resting on cardboard (to catch any drops) and covered with clingfilm.
And here, a short time later, the same backing pads having been pressed against the coachroof. There are still gaps in the epoxy, but it is close enough and I can put more in these gaps and smooth it over.
I made a lot of epoxy, this is one of the reasons for that…
…and this is the other. The aft end of the skeg needs some repair. I think that the original is three long pieces of wood stacked on on top of the other, with two side pieces to hold it all together.
Like this. The red green and yellow pieces are the ones stacked on top of each other. The white pieces are the two side pieces holding everything together. That is the original skeg. at least I think so.
At a later time another piece has been added to the bottom of the skeg and various dings and scratches filled with epoxy. The back part of this has been partially knocked off so I took a chisel to the whole thing and removed as much of the loose parts as possible, then sanded it with 80 grit sandpapar.
This was slathered with the thickened epoxy and a layer of peel ply put over the top. This will be covered in antifoul paint before being launched and if I leave the amine blush on the epoxy, the paint will come off. Besides which, the peel ply allows me to smooth the epoxy down with my hand (wearing nitrile gloves) and that all by itself is worth doing.
You can see the addition to the bottom of the skeg more clearly from the side.
I also filled in the old screw holes where the bullseyes were.
I will need to go over both these areas with a sander to remove the excess epoxy, but I will have to do that in order to apply the new paint.
One of the holes did develop a short tail as I pressed too much epoxy into the holes from the outside.
But that was easily removed and I used the tail to fill in a nearby hole in the upstand.
With the temperature forecast for the weekend getting down to near zero and possibly with snow, I want to get any outside epoxy work done today so that it stands a good chance of curing before the temperature drops.
Time for a cup of tea.
The next task was to resize the locker lid so that is fits since about a third of the original length has now been allocated to the galley stove.
This was a pain to do as I had to reuse the brass hinges but with stainless screws and getting them screwed in was awkward. Still, it is done now.
The result isn’t too bad. I gave the lid a light sanding and will add some coats of varnish in situ. I don’t want to remove and replace it again. The cut edge need to be varnished from scratch but the rest of the top can just have a coat or two.
I also took the time to add screws to the various battens in the galley locaker. These have been glued using cyanoacrylate glue which is very good but it is brittle, so I added the screws, just in case.
The first small task on the list today was applying a second coat of varnish to the top side of the galley stove boards.
The boards are starting to look a lot more shiny than for the first coat as that soaked into the wood. This one did not, or not so much, since the first coats sealed most of the wood grain.
The glue up of the wood for the new top section of the aft block seems to have gone well, so it was out to the workshop to remove the rough surfaces.
The planer puts a lot of pressure and stress on the wood as it is cutting off wood from the surface and if a joint is not particularly good, then this usually results in the join splitting apart. In this case it didn’t so all is well there. I planed the wood down to it’s final thickness and now it is ready to go.
To prevent more cutting that necessary I aligned the straight front edge of the paper template with the edge of the workpiece.
The next task is to cut the rebates as doing this now whilst the block is still large and rectangular will prevent mishaps trying to do this later on when it is not.
Four passes on the table saw and that is done.
Mind you, I messed this up and made a cut in the wrong place for the first cut. Still, this will be minimal once the piece has been shaped and any errant slot remaining will be filled with thickened epoxy.
Time for a cup of tea.
First the two easy cuts made on the mitre saw.
Then a straight cut at the back to get closer to the line made on the bandsaw (carefully).
Then the excess was sanded away using an oscillating sander. So far, so good.
Not too bad for a first approximation. The front and sides are pretty much an exact fit, but the back has missed, fortunately on the plus side, not the minus.
Here’s an inside view and the mismatch at the back is slightly more clear in this photo.
And this from the other side.
Time for a cup of tea.
The next task is to put in the case side template and see how that fits with the new top.
The template was put into the keel, clamped to the top and two thin battens clamped either side of the aft block spanning the old and the new as you can see above. These were to keep the new piece in position and upright as much as possible.
Looking at the new piece now you can see that the bottom of the curve on the new section isn’t that far off.
So, I carefully sanded a bit more off until it was a pretty good match.
Using a self-centering dowel drilling jig I drilled two 10 mm holes through the new top, both being perpendicular to the bottom.
I chose to drill them completely through the block rather than attempt to drill matching holes in the old section by guesswork. This way I can clamp the top piece in place and drill down through the holes and get a perfect fit.
The block clamped in place…
…and the resulting holes in the bottom section.
I used two pieces of an medieval style arrow shaft, made from Ash, which was 10 mm in diameter and sanded it down a little to make it a loose fit. I put each piece into a cordless drill, wrapped coarse sandpaper around the shaft and spun the shaft until the desired fit was obtained.
Finally for this part I sanded a flat section on each shaft. Without this the dowels will not seat properly as the pressure from the air and glue being forced into the hole pushes the dowel out again. This is the reason that the dowels you buy from a hardware store are not round but ridged all round.
The holes in the bottom section were filled with Clear Penetrating Epoxy Sealer and I was gratified to note that the CPES did not soak in much, indicating that the wood through which the holes were bored were not porous. I did coat the top of the wood and that did soak in but that is endgrain and I would have been perturbed if it had not on any but the very densest woods, of which this is not. I also put CPES on a number of other areas in the boat that have been waiting until I had enough to make it worth mixing up a batch.
That concluded the outside work for the day, inside I put the third coat of varnish on the galley stove boards.
Not a bad day’s work. All small things but on the critical path. While I wait for the CPES to dry, three or four days in this temperature, I’ll finish off the case sides which need to be trimmed and a bead of sealant put all around the outside corners where water could collect.
